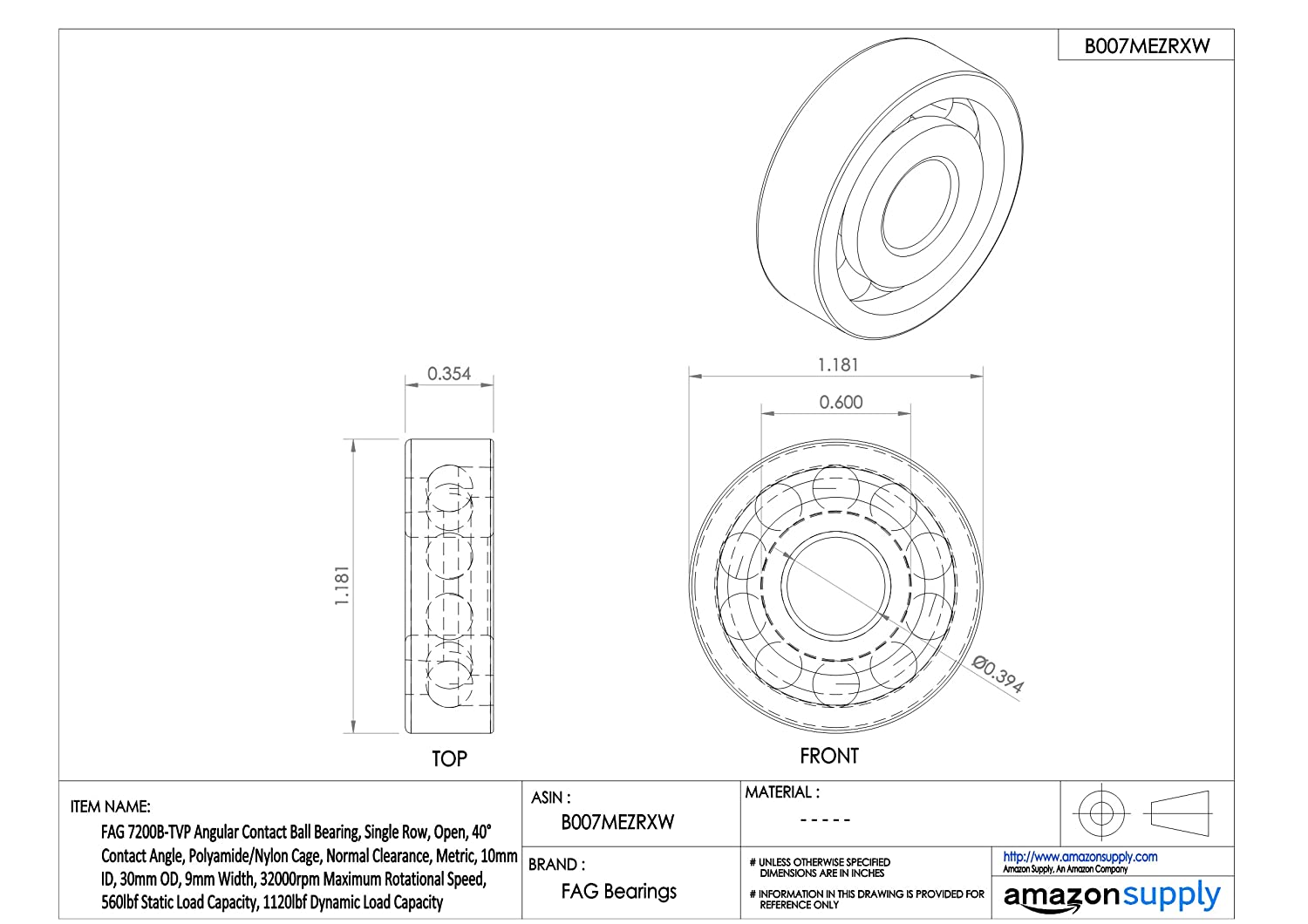

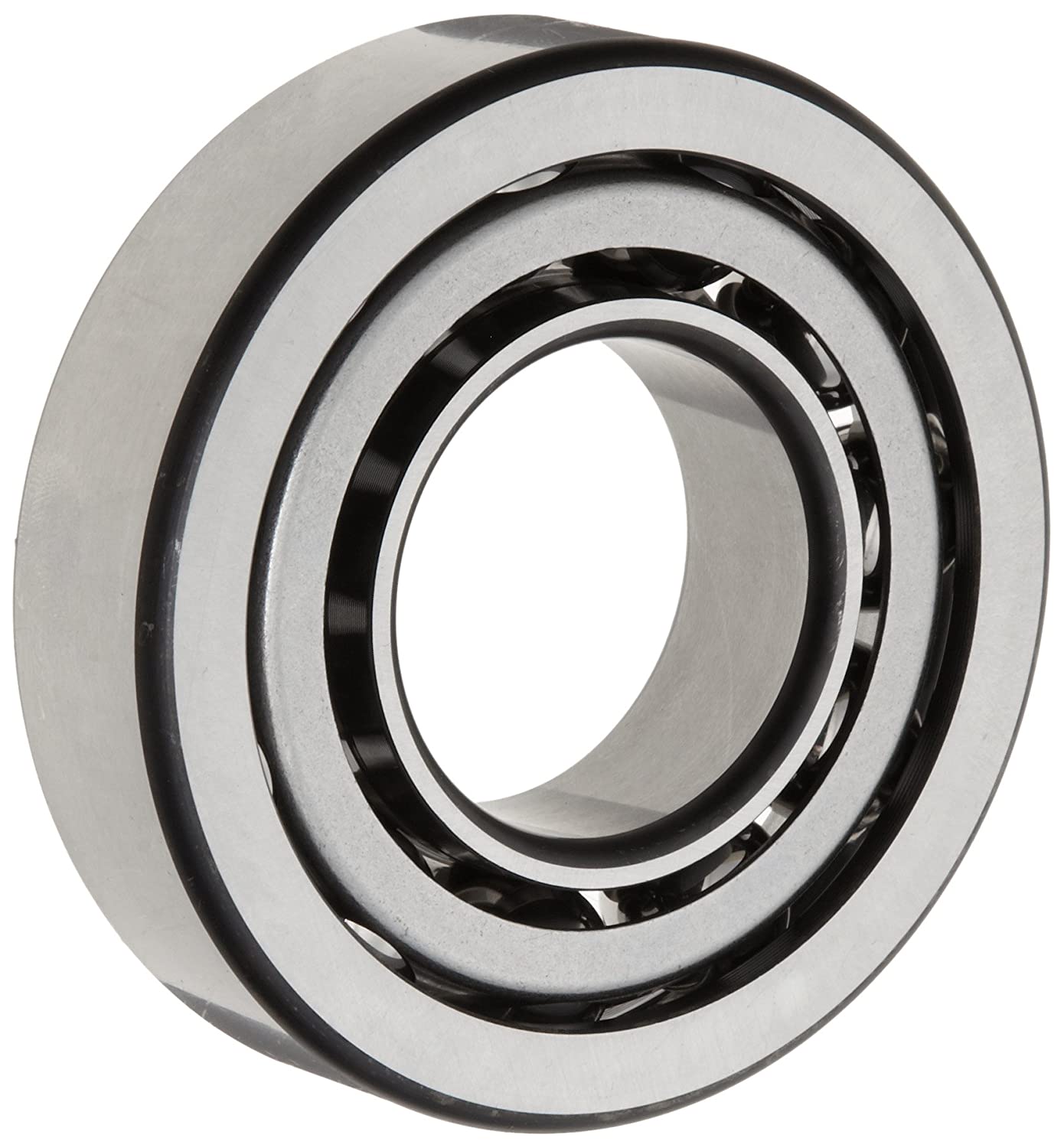

FAG 7200B-TVP Angular Contact Ball Bearing, Single Row, Open, 40° Contact Angle, Polyamide/Nylon Cage, Normal Clearance, Metric, 10mm ID, 30mm OD, 9mm Width, 32000rpm Maximum Rotational Speed, 560lbf Static Load Capacity, 1120lbf Dynamic Load Capacity,
Specifications for this item
Bearing Type Ball Bearing
Bore Diameter 10 millimeters
Brand Name FAG Bearings
Compatible Lubricant Type Grease
Dynamic Load Capacity 1120 pounds
Ean 4012801165792
Inside Diameter 10 millimeters
Item Diameter 30 millimeters
Material Nylon
Maximum Rotational Speed 32000 rpm
Measurement System Metric
Model Number 7200BTVP
Number of Items 1
Part Number 7200-B-TVP
Specification Met Din 623-1 , Iso 281 , Iso 683-17 , Iso 199 , Din Iso 281 , En 10139 , Sae J403
Static Load Capacity 560 pounds
UNSPSC Code 31171531
Width 9 millimeters
