  Max RPM, 15700 lbs Static Load Capacity, 7200 lbs Dynamic Load Capacity

Brand INA
Material Alloy Steel
Bearing Type Ball Bearing
Compatible Lubricant Grease
About this item

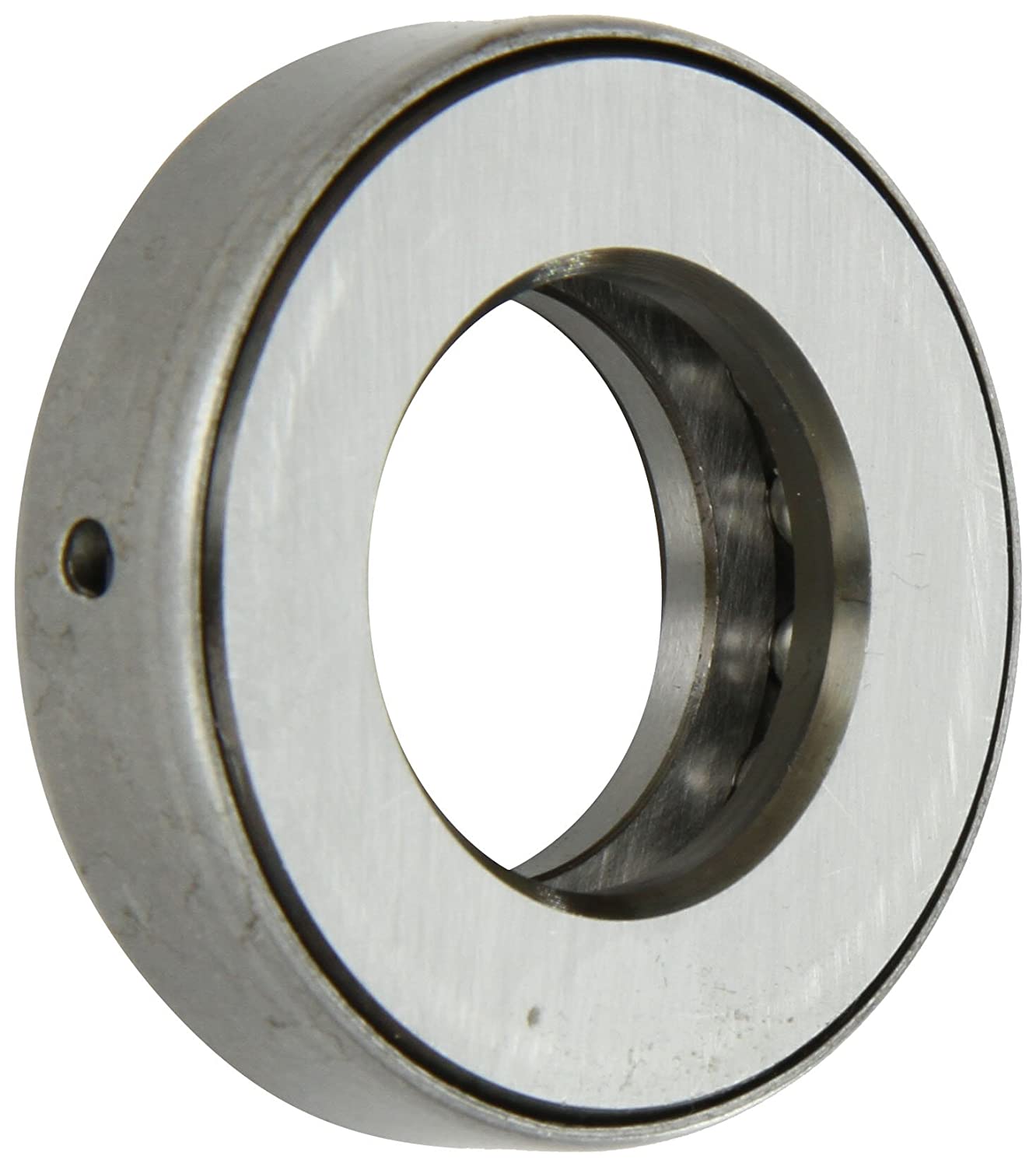

Single direction, deep-groove thrust ball bearing for applications that support heavy axial loads in one direction
Open bearing for lubrication applied in place
Through-hardened chromium steel for durability and resistance to deformity under heavy loads
Sheet steel retainer evenly spaces rollers for reduced friction, vibration, and noise
Grooved raceways for higher speeds and thrust-bearing capacity than flat washers
Specifications for this item
Bearing Type Ball Bearing
Bore Diameter 1-1/4 inches
Brand Name INA
Compatible Lubricant Type Grease
Dynamic Load Capacity 7200 pounds


Item Diameter 2.344 inches
Manufacturer Series Number D
Material Alloy Steel
Measurement System Inch
Model Number INA-D13
Number of Items 1
Part Number D13
Static Load Capacity 15700 pounds

Width 5/8 inches
